Products
Simulators and training packages designed and developed at SRL.
Micro-Gravity Simulator
This simulator is composed of a launching pad, imaging rack, and electromagnets. Using this simulator and its four designed experiments, the concept of the weightlessness conditions are simulated for the students. Achievement Creators Profile Description Profile Description Profile Description
Micro ADCS Simulator
“Micro ADCS simulator” is a simulator for knowing, developing and testing the performance of the satellites attitude determination and control subsystem, (ADCS). This simulator has been developed as hands-on training setup for students and researchers who are going to work in space technology field. “Micro ADCS simulator” were explored to establish 1-axis attitude control.This simulator […]

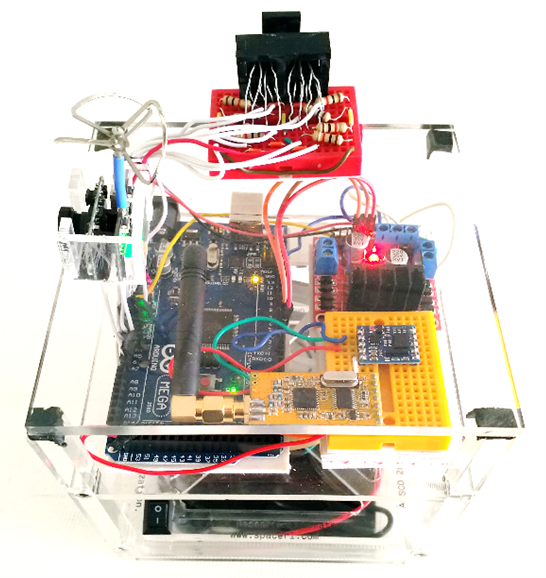

CubeSat Hands-on Training Package (CHTP)
Small satellite, big future Introduction Currently, CubeSat with a 10 cm cube (10×10×10 cm3) and a mass of up to 1.33 kg has become the lowest cost turnkey access to Space, which has become the most popular training/educational tools or low-cost technology demonstration platforms that could be developed and launched within a short period. The […]
Tabletop Micro Air-bearing
Introduction To simulate the conditions of the space environment at ground the SRL was developed a tabletop Micro testbed.The Tabletop Testbed provide near-frictionless motion environment with 360-degree rotation about one axis (yaw rotation) about 35-degree around two other axis (Roll and Pitch).Tabletop Micro Air-Bearing has 2 main parts:1. Platform with balancing mechanism2. The hemispherical Air […]
Nasir CubeSat
Project Overview The Nasir-1 CubeSat is designed and developed by Space Research Lab (SRL) of K.N. Toosi University of Technology (KNTU) within a Student CubeSat contest. Currently, this project lies in the phase of the Engineering Model (Phase C, as per the ECSS standards).Nasir-1 CubeSat team is composed of university staff, M.Sc. and B.Sc. students […]
School Vacuum Chamber
Vacuum and Its Formation Vacuum is called to a space which is free of matter. In such a condition, air molecules which cause pressure are also available. This is an ideal definition of vacuum. Absolute zero pressure is defined in this space. In practice, achievement of such an environment is impossible because there are always […]
Cold Gas Thrusters
For making changes in the attitude (or position) of the satellites, considering the level of change and its kind, different actuators can be used. This actuators, by the use of Action and Reaction Principle (Newton’s second principle), can import force to the satellite without relying on any surface. One of the most important of such […]
LEO Earth Station
Earth stations are mainly designed in order to connect to the satellites, receive payload information and send control commands. Along with the advancements of space department technologies, and through developing satellite earth systems which are applicable by spending acceptable money and energy, educational and research programs of space fields at universities and research centers can […]
Magnetic Field Simulator
In order to test the identification of magnetic two poles of the production magnet torquers and also their interaction with magnetic field there was a need for satellite orbit, so that by the use of two dimensional Helmholtz rings, the magnetic field of the orbit could be simulated in a coordinate system attached to the […]
Reaction Wheels
For making changes in the attitude (or position) of the satellites, considering the level of change and its kind, different actuators can be used.This actuators, by the use of Action and Reaction Principle (Newton’s second principle), can import force to the satellite without relying on any surface.One of the most important of such actuators is […]
Virtual simulator of space systems
Virtual simulator is a device which helps to analyzeand assess space systems functions and their control algorithms without any difficulty or hardware problems. Considering this issue and also country�s need to have access to such products, virtual simulator of space systems is designed and operated at space research Laboratory. This simulator, by the use of […]
Satellite’s ADCS HIL Simulation Package
In order to simulate the functional environment of a space system and to assess the function of control/stability subsystem, SpaceRL has begun designing and making the Hardware In the Loop (HIL) for attitude simulator. This system is a stand with three degrees of freedom which can simulate the attitude of a space system and its […]
Software for systematic analysis of space systems
In space systems design process, the use of system analysis is inevitable. System engineering makes it possible for the designers to carefully consider all dimensions of the problem. In system engineering process, the relationship between workgroups, subjects and different subsystems is appropriately made possible through software. Due to the design and manufacturing of different space […]
